Overview

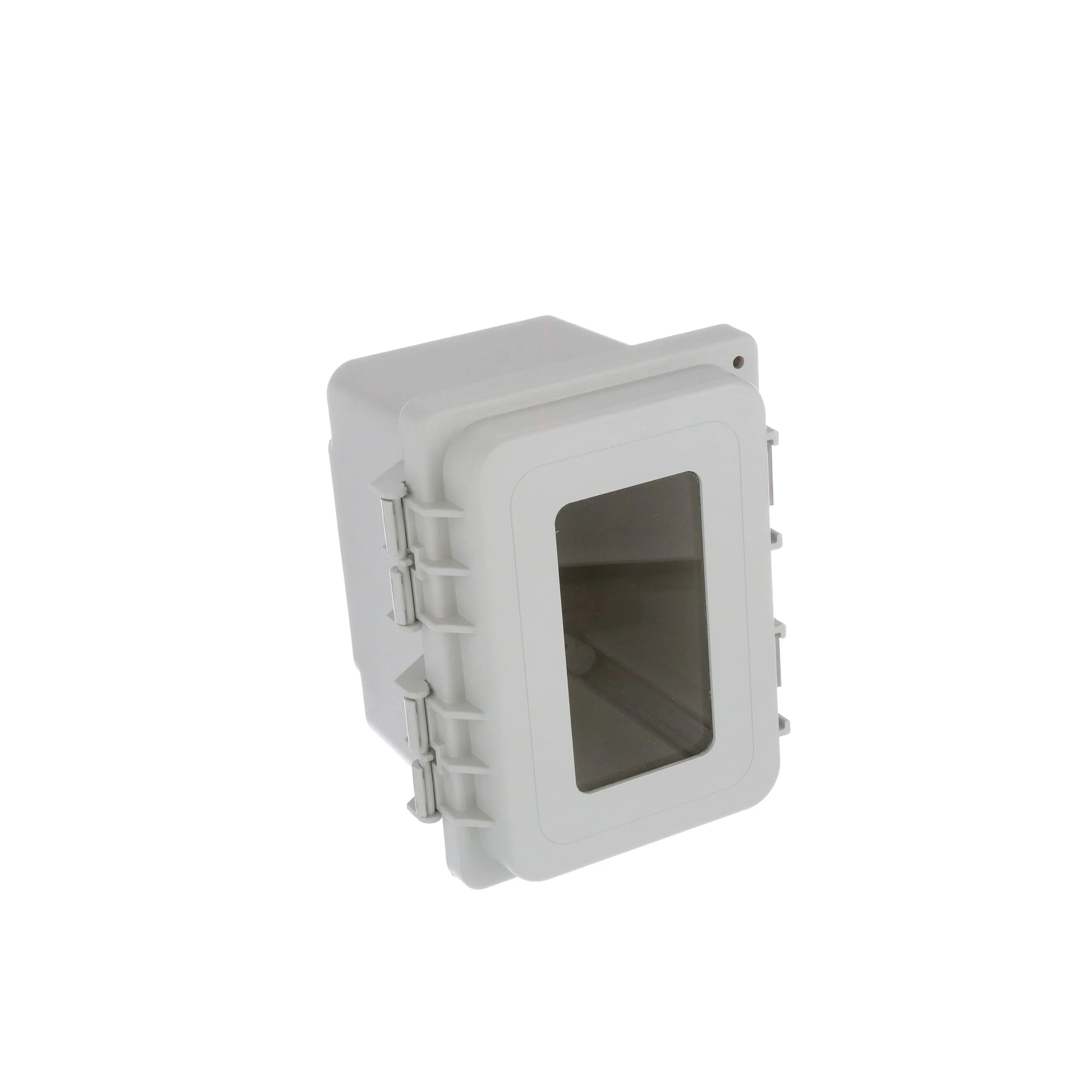

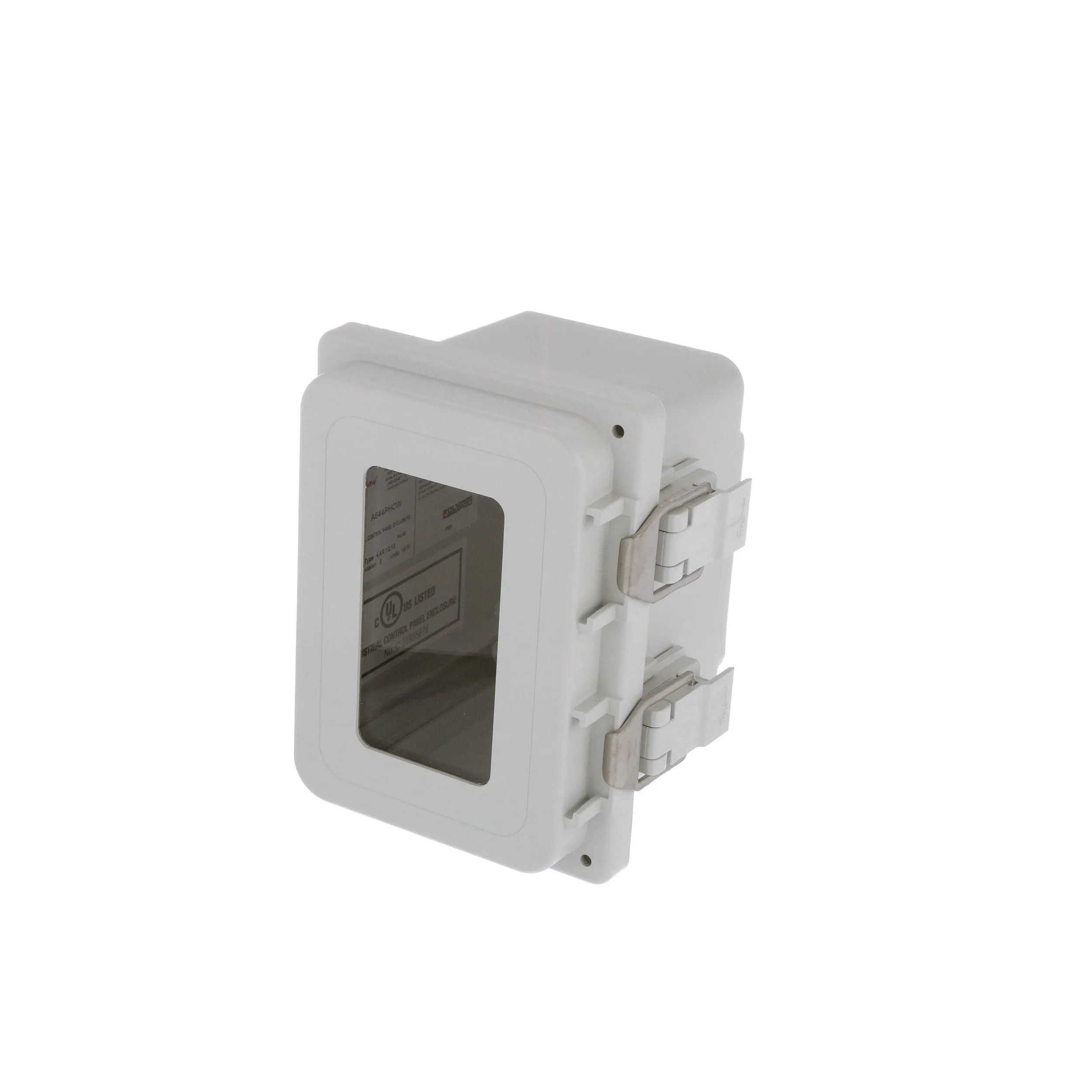

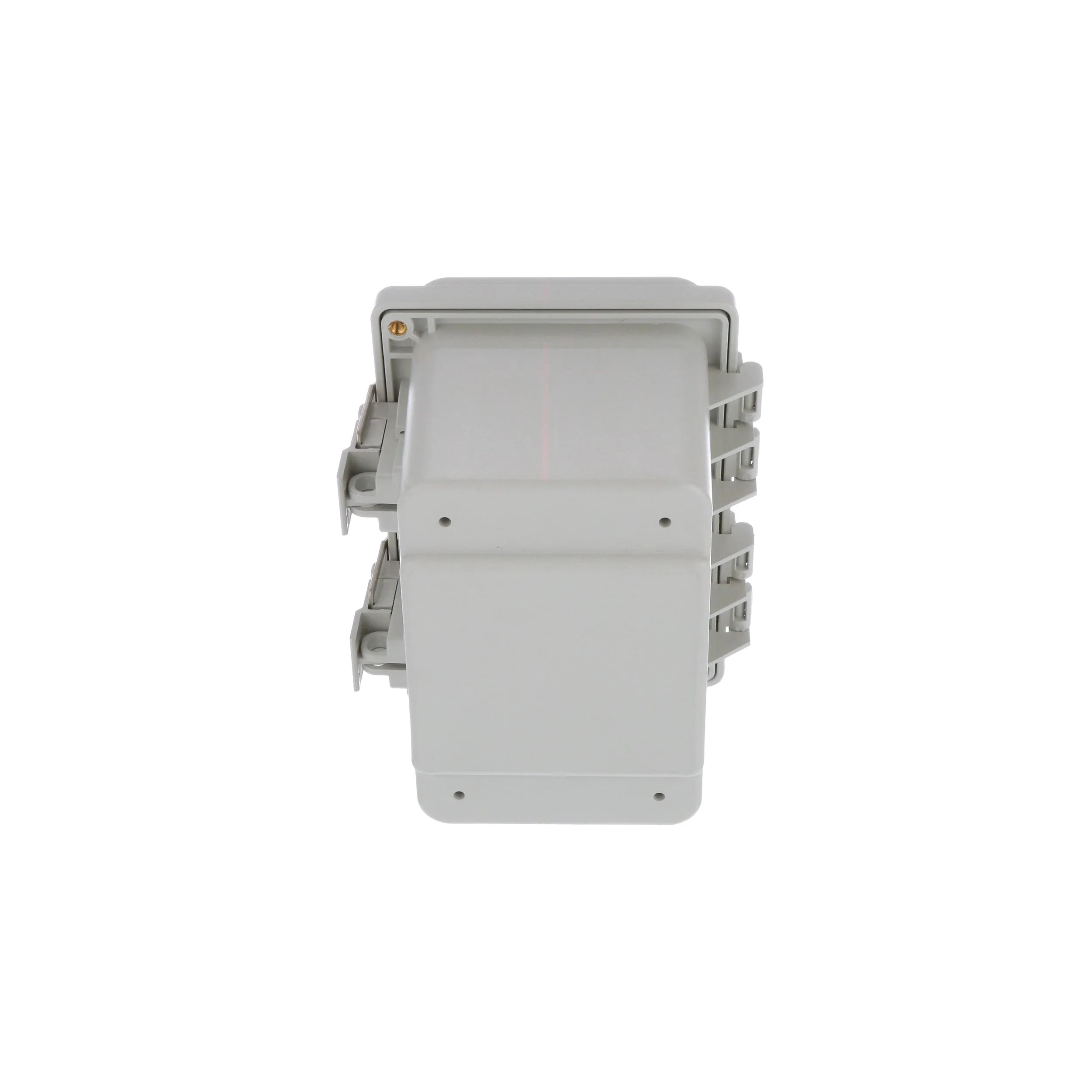

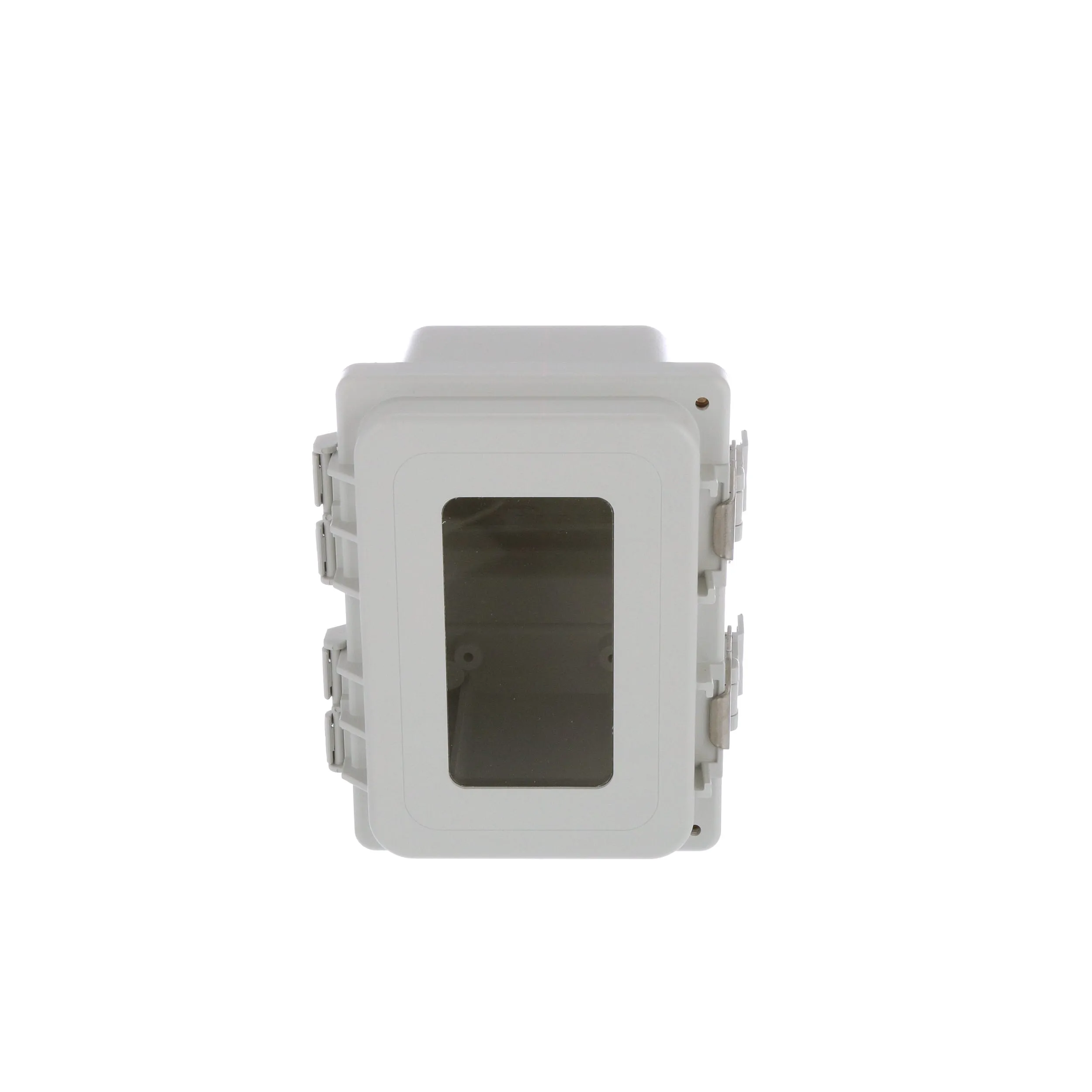

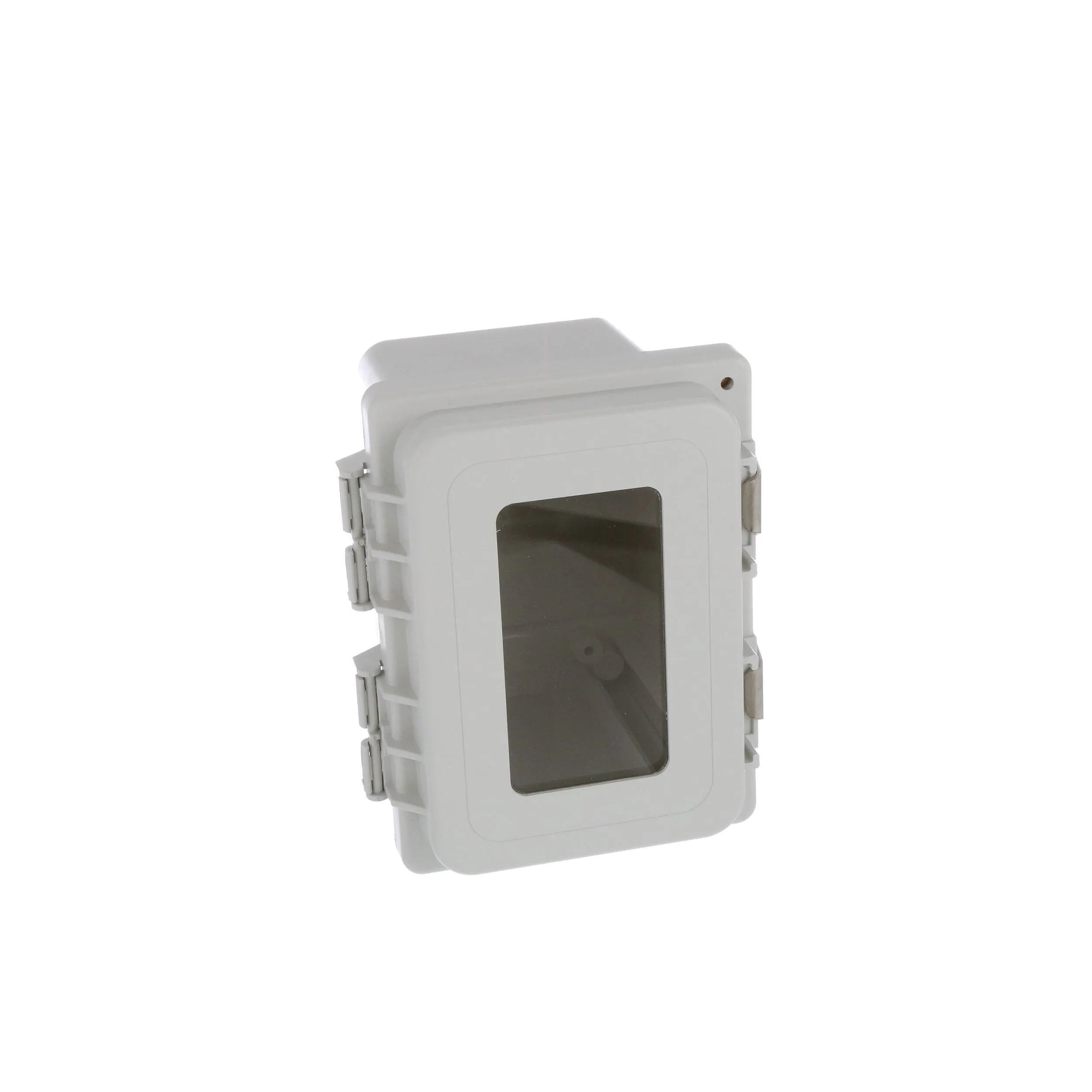

Hoffman PolyPro Series — Type 4X UV Resistant Polyester Enclosures:

PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.

Features:

Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass

Provides excellent chemical resistance to a broad range of solvents, alkalis and acids

Resists cracking and provides excellent impact resistance

Lighter-weight than fiberglass
Recyclable

Easy, dustless in-field modifications using standard tools

Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal

Removable snap-hinge cover allows for easy access to cover and body for modifications

Molded layout grid on inside of body and solid covers assists with component mounting

Molded-in embosses for rear panel mounting

Optional cover screws included with all models

Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels

Scratch-resistant polycarbonate windows

Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)

UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997

Enclosure flammability evaluated per UL 508A

Window flammability evaluated per UL 508A

NEMA/EEMAC Type 4, 4X, 12, 13

CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)

IEC 60529, IP66

***NOTE: Purchase panels and extension rings separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.

Accessories for this Range Include:

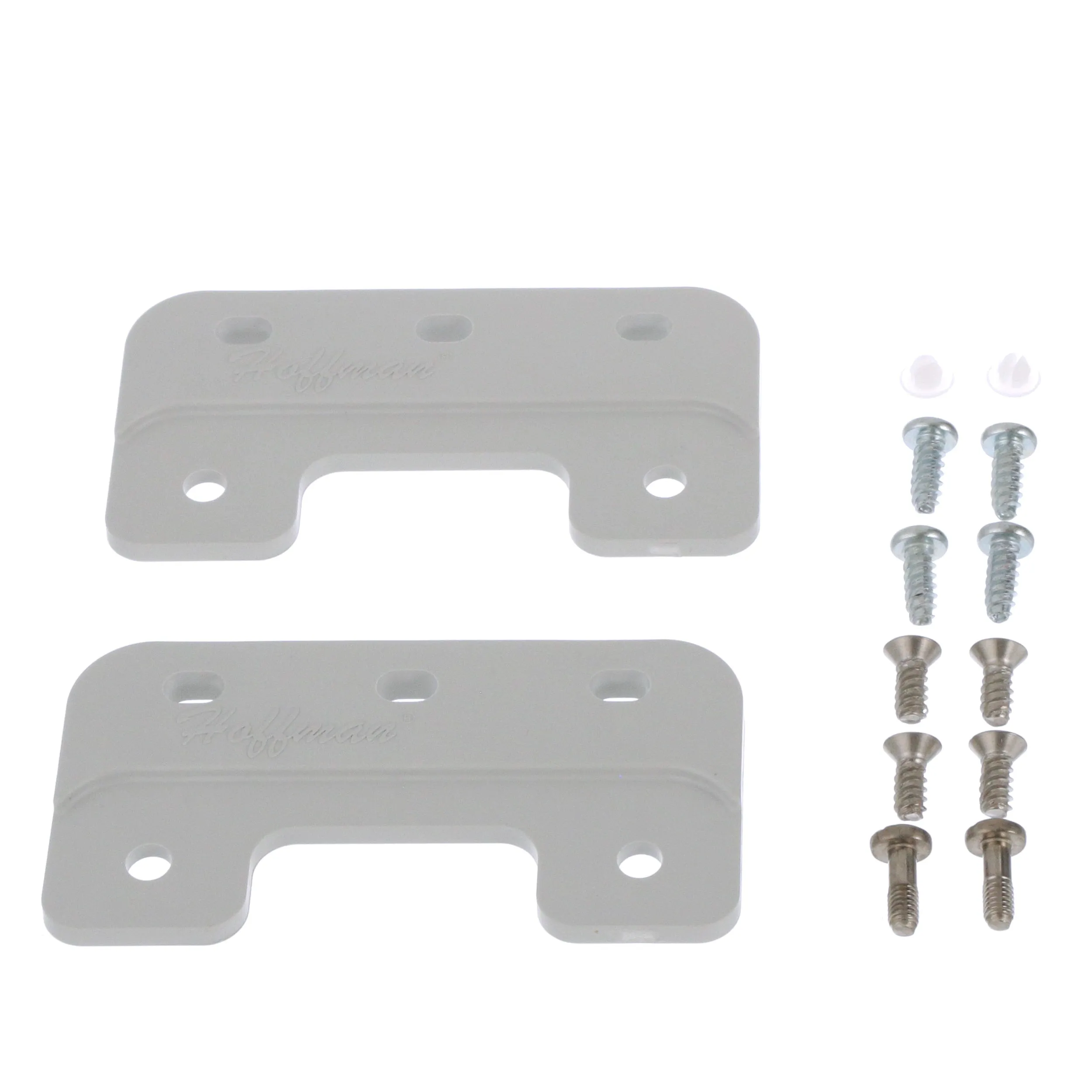

Adjustable Panel Block Kit

Panels for Junction Boxes

Hol-Sealers Non-Metallic Hole Seals

Aluminum Swing-Out Panels

Stainless Steel Latches (Padlockable)

Hinge Retainers
