Overview

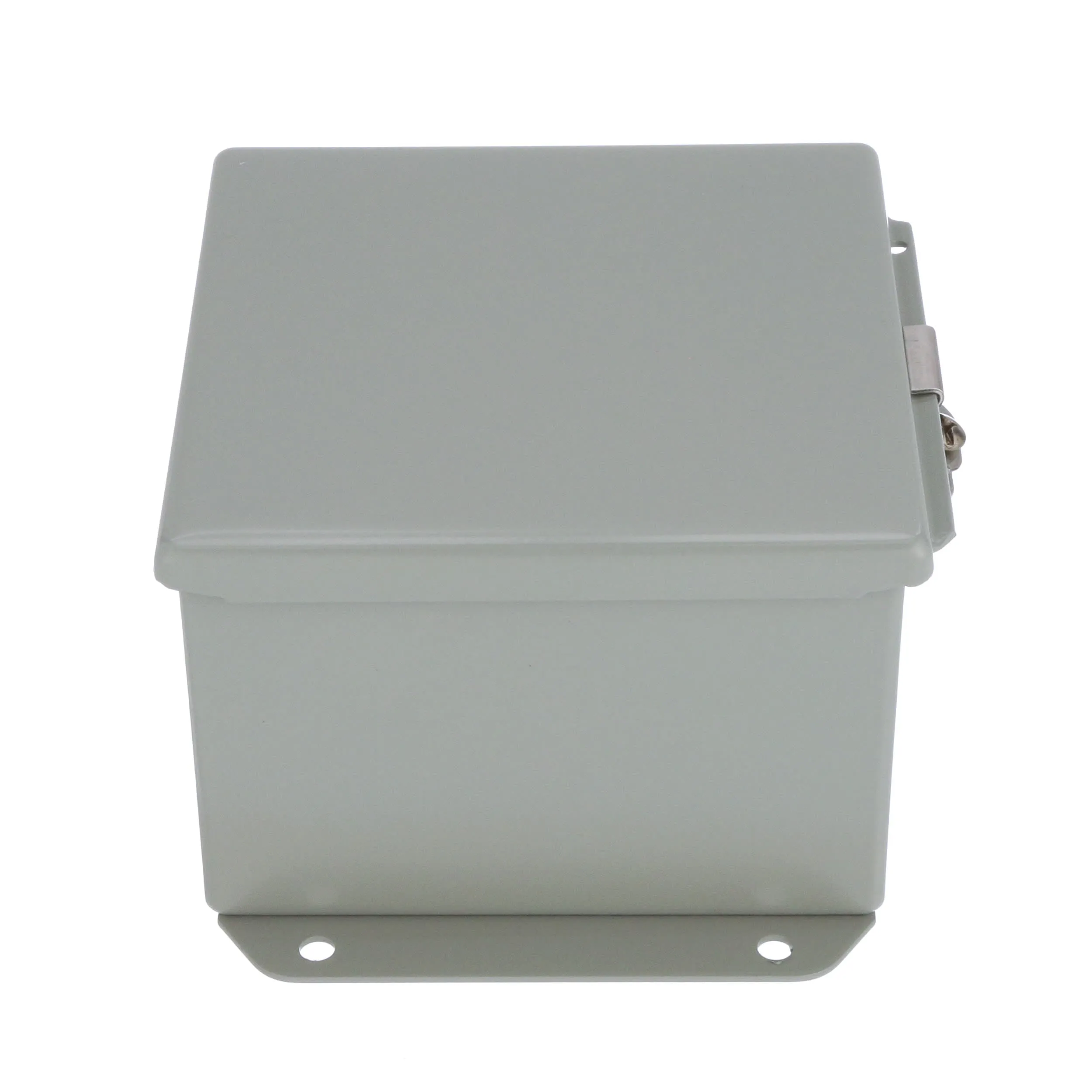

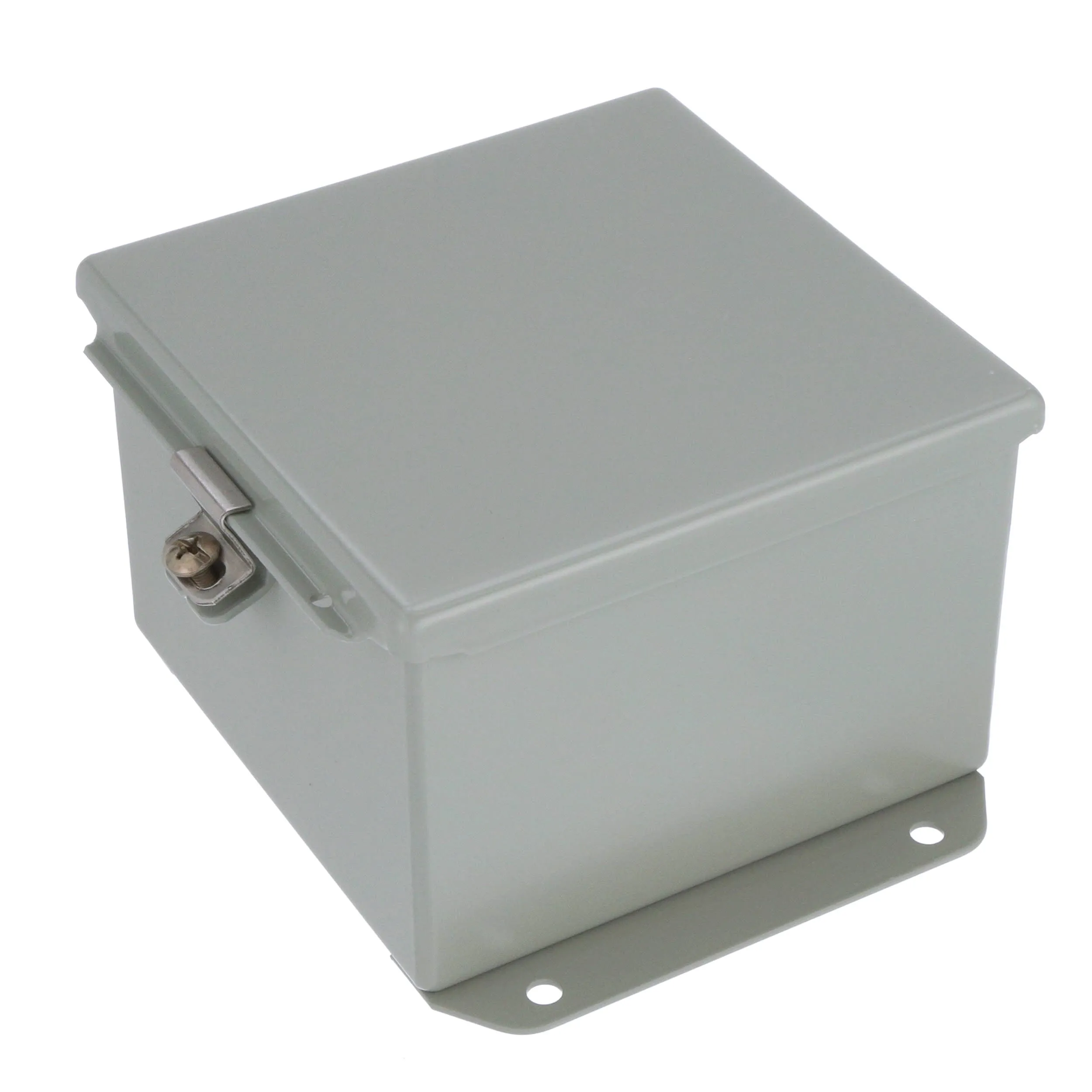

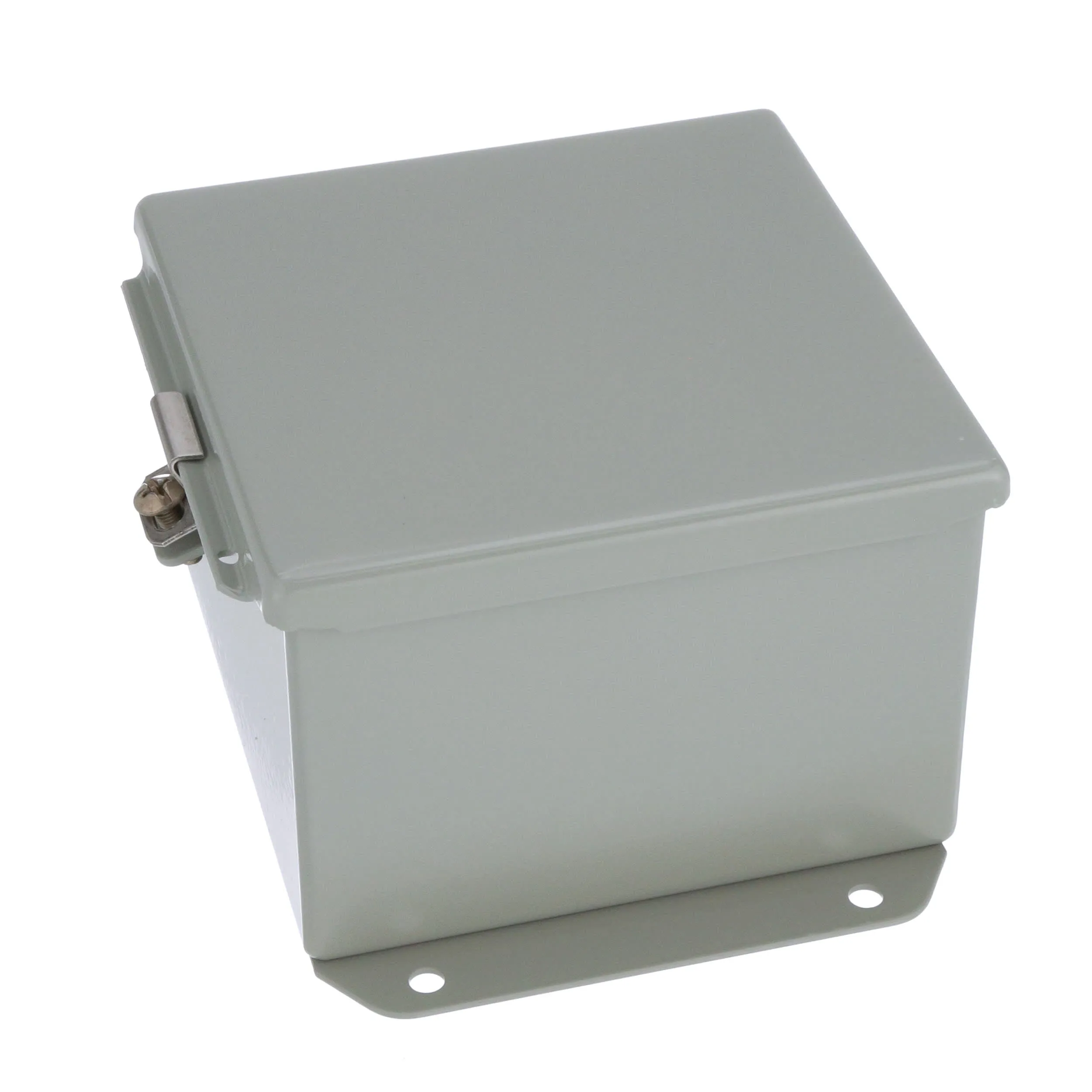

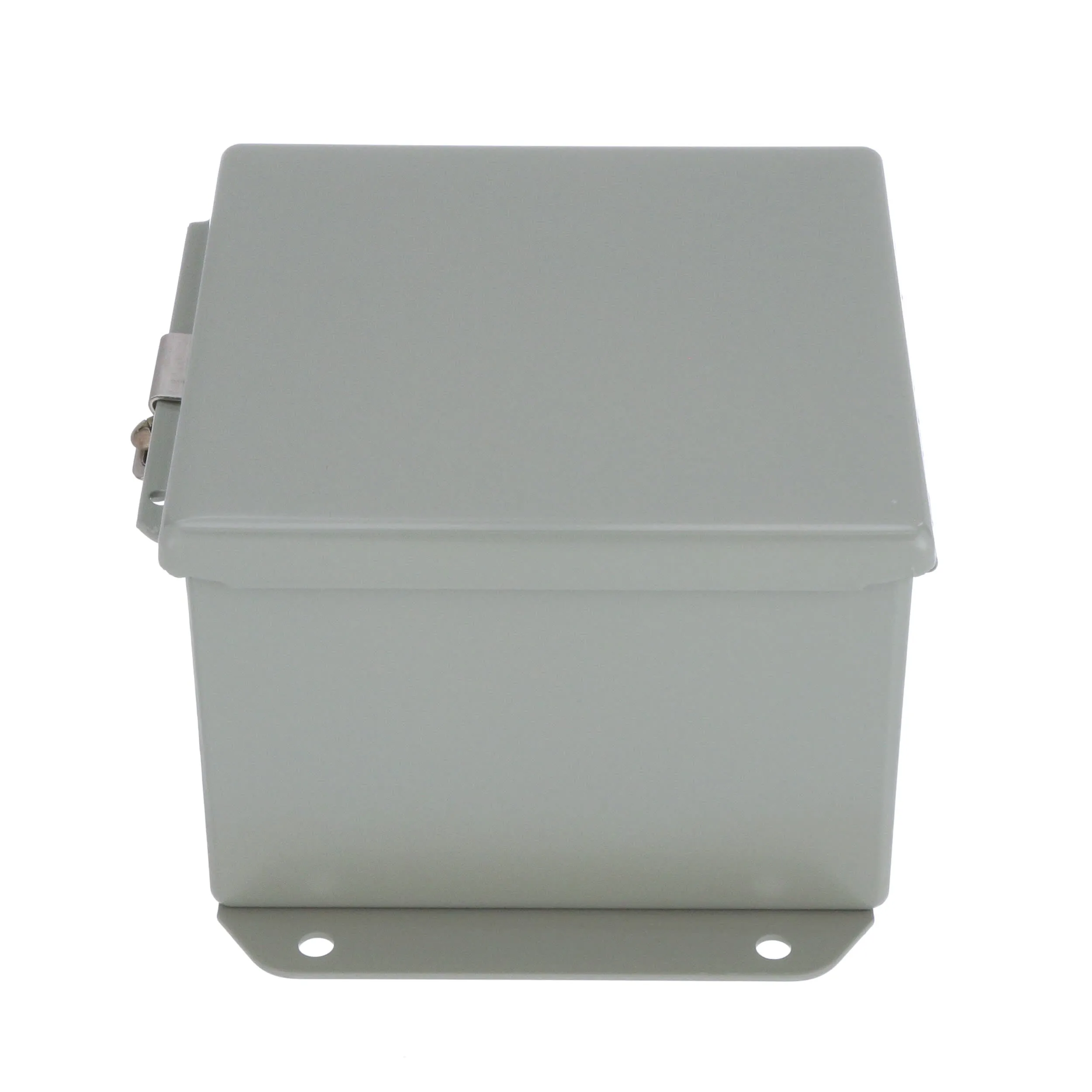

Hammond HJH Series – Type 4, 12 Mild Steel Junction Box:

Continuous Hinge Door with Clamps.

Features:

UL 508 Type 3R, 4, 12 and 13

CSA Type 3R, 4, 12 and 13

Complies with, NEMA Type 3R, 4, 12 and 13, JIC EGP-1-1967 unless marked, IEC 60529, IP66

Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating

Body formed from 16 or 14 gauge steel | Covers are formed from 14 gauge steel

Smooth, continuously welded seams without knockouts, cutouts or holes

Welded brackets provide for enclosure mounting

Continuous hinged cover is secured with stainless steel clamps and screws

Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin

Seamless poured-in place gasket

Internal threaded weld studs are provided for mounting inner panels

A bonding stud is provided on the door and a grounding stud is provided in the enclosure

Applications:

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures

Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection
